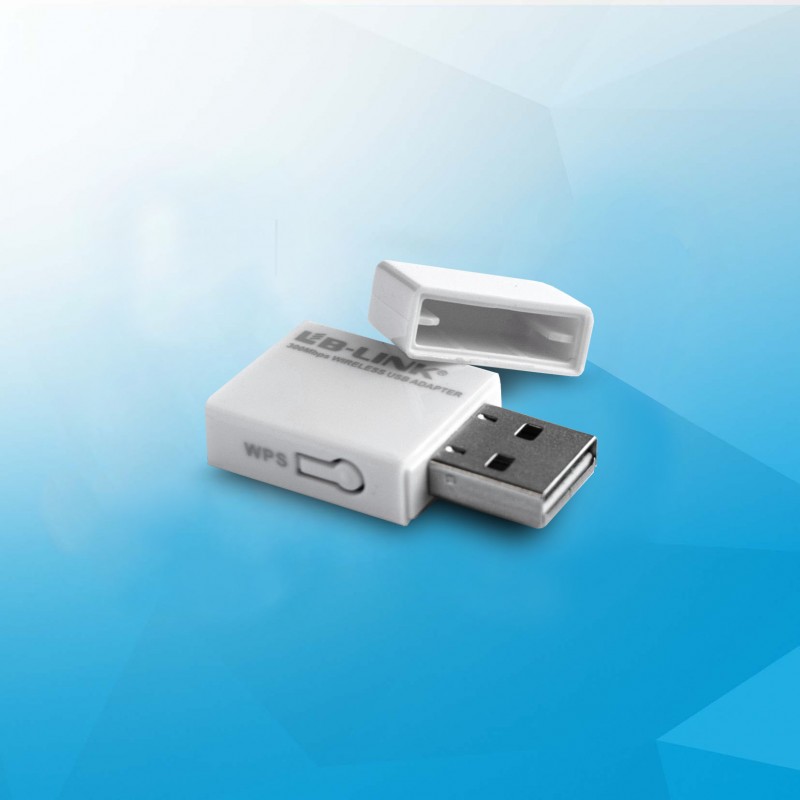

USB WiFi dongle (BL-WN2210)
USB WiFi dongle 802.11 b/g/n
Enable WiFi on your up board by utilizing this micro WiFi dongle.
The dongle is tested and confirmed working on Windows (7/8.1/10), Linux and Mac OS. Android support is currently in development.
Standard: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Interface type: USB1.1 USB2.0
Frequency range: 2.4-2.4835GHz
Working channel number: 13
Data modulation: OFDM/CCK/16-QAM/64-QAM
The sensitivity of @PER
270M: -74dBm@10% PER
130M: -74dBm@10% PER
108M: -74dBm@10% PER
54M: -74dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -95dBm@8% PER
Spread spectrum technology: MIFO OFDM (keep the speech fluency)
LED: State indicating lamp
Working mode: Peer-to-peer (Ad-Hoc), centralized control type (Infrastructure)
Transmit power: 18dBm (max)
Transmission distance: Inside the distance of 100 meters, 300 meters outside the farthest (varies with the environment)
Operating system support: Windows 2000/XP/Vista/Win7/Win8
Working temperature: 0 ? ~40?
Storage temperature: -40 ? ~70 ?
Humidity: 10%~90%, no condensation
Storage humidity: 5%~90%, no condensation temperature
Working voltage: DC 5V±0.2V
